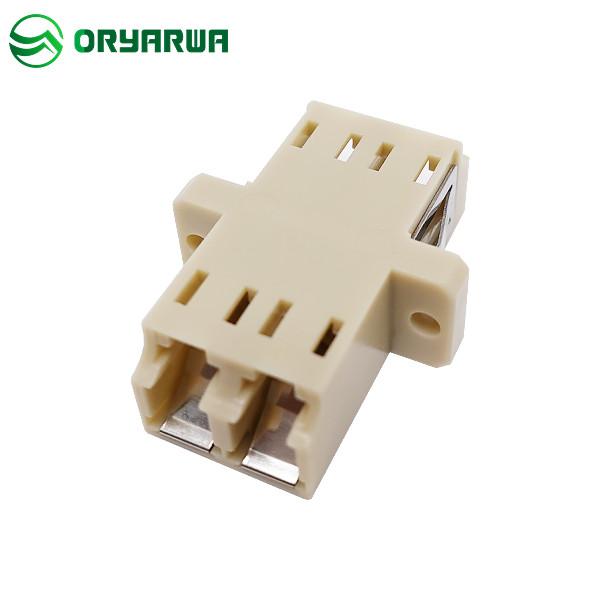

Duplex LC Fiber Optic Adater With Inner Shutter Eye Protection
Detailed Product Description:
| Product Name | LC Duplex Fiber Optic Adapter with Shutter | Color | Blue/Green/Aqua/Beige/OM4 |
| Mode Type | Singlemode, Multimode | Insertion Loss | ≤0.2dB |
| Sleeve Pull Force | 1-2.5N | Durability | ≤0.2dB( 500 Times) |
| Operating Temp. | -40℃～+80℃ | Standards | IEC61754-20-2012 / IEC61300 |
Environmental and Mechanism:
| Properties | Test condition | Conformance | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 500 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-12 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-6 | ≤0.2dB |
| Temperature Cycling | 40ºC to +85ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidty cycling | 40ºC, 95%RH, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | | ≤0.2dB |
| Storage Temperature | -40ºC to +85ºC | | ≤0.2dB |
Features:
> Auto shutter protects against dust and contaminants
> Eye production
> Light weight, Compact design,
> High precision and good stability
> Various forms, easy to use.
Application:
> Optical Distribution Frame
> Optical Network System
> High-speed optical fiber transmission system
> Cable TV (CATV) System
> Long-distance trunk line dense wavelength division multiplexing (DWDM) system
> Optical Add/Drop Multiplexer (OADM)
FAQ:
Q1: How can I get the sample?
Welcome to contact our saleman, and tell us your demand. we are glad to provide free sample,
our clients just need offer express account and pay the freight.
Q2: What is your MOQ?
Our MOQ is 1000PCS for Our normal models, if you need to open new mold.
MOQ will be check again based on your design.
Q3: What is your Lead time?
Our Delivery time is 3-14days. We usually keep some stocks for regular product. if we have
enough stock, then can do shipment with 3 days, if not, need to wait for production about 14days.
OEM project will be check delivery time again.
Q4: Can I do OEM/ODM?
Yes you can, we have 20 years of customized experience, our R&D team are responsible design
new product, open new molud and offer technology support. You are welcome to do OEM/ODM service.
Q5: What certifications do you have?
All our product meet IEC standard, pass REACH, RoHS test.
Reports:
LC Adapter_PC Material_REACH(HATEK).pdf
LC Adapter -PC Material-RoHS(HATEK).pdf
Drawing:
OYH-JS-ZP-096 LC Adaptor Duplex Flangeless One pie...
OYH-JS-ZP-097 LC Adaptor Duplex with Flange One pi...
